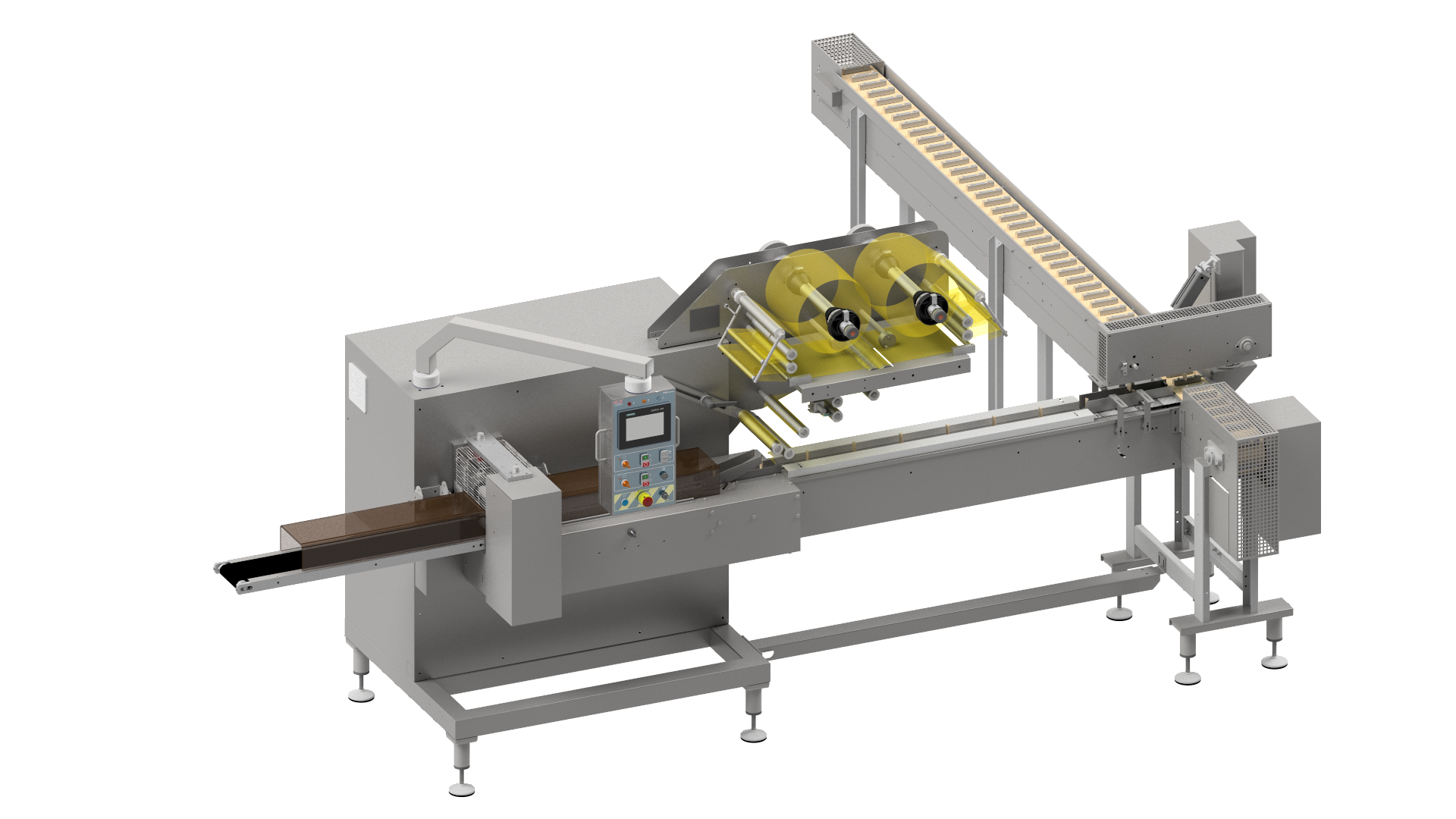

M230 Asky Wrapping Machine

Capacity from 3.000 to 12.000 pcs/h
Ideal to wrap products like:
- Icecreamor water ice stick
- Round, square or rectangular IC sandwich
- Russian cups/Ball top cone
- Icecream slice with or without coating
- Others products type to be evaluate
Cold & Hot seal possibility
Maximum & Minimum foil/paper thickness, from 20 to 40μ
Compact Design (W 1.000 x L 2.900 x H 1.600mm)
Plug & Play machine
Servo driven
PLC controlled with touch screen HMI
Double reel holder (double reel on request)
Fixed dimension folding box
No.4 couples of sealing roller for fin seal (the first copule tiltable)
Single jaws for cross sealing (double jaws type on request)
Max reel width 300mm (others reel width on request)
PIP feaure included

Standard Equipment

Optionals

TECHNICAL DATA

Weight

800Kg

Dimensions

-

Capacity

12000pcs/h

Max Bobin Reel Width

3-400mm

Electric Automation

Siemens
Rockwell Automation
