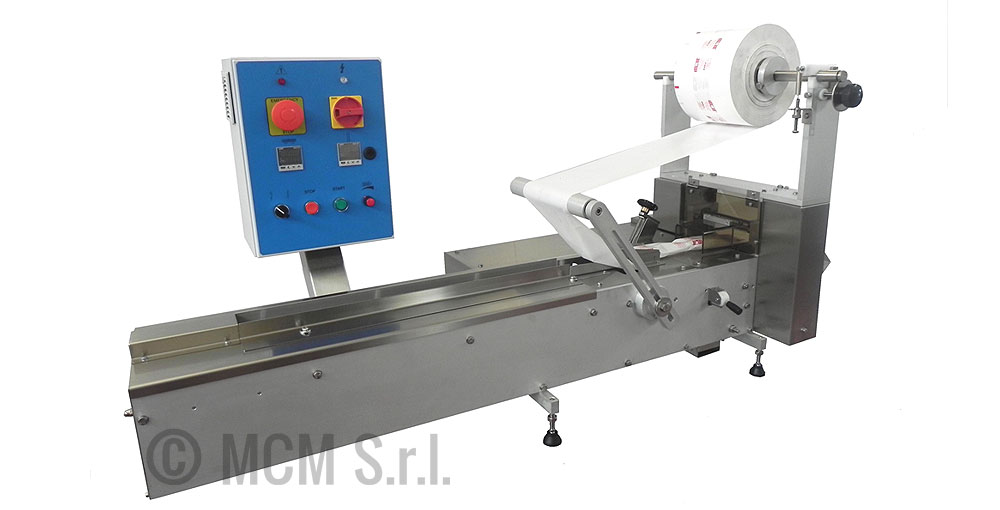

    Lilliput wrapping machine

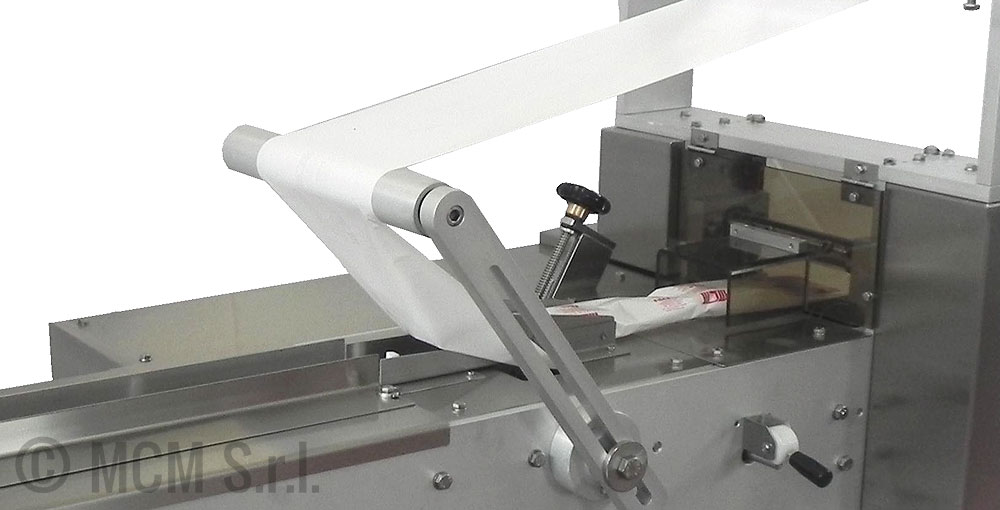

  • Particolar of wrapping machine Lilliput

    Lilliput wrapping machine

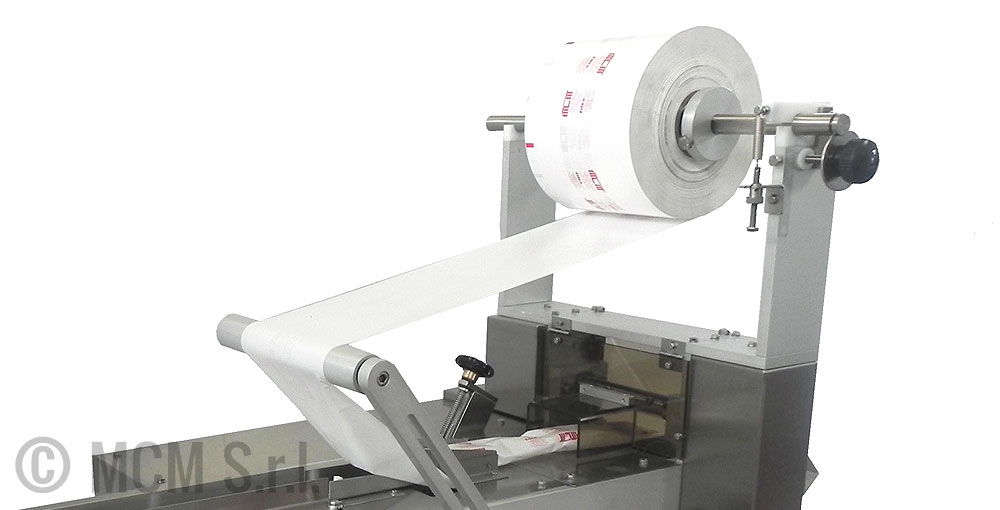

  • Particolar of wrapping machine Lilliput

    Lilliput wrapping machine

Lilliput wrapping machine

Table top LILLIPUT wrapping machine can be considered one of the smallest flow-Pack in the world.
Although it has been designed for small productions, its performances are satisfying a wide range of customers.

Born to wrap water ice creams but also used in the confectionary field, bakery , gadgets and deodorants.

Manufactured in stainless steel, treated steel and anodized aluminium, it is able to work with films in biorientate polypropylene, coextruded and/ or lacquered, several coupled materials, hot sealing or cold having thickness 20 up to 40 μm, neutral or continuous printing , picture in place device is not available on this machine model.

Standard equipment
  • Single reel holder
  • Simple cutter jaws
  • Fixed folding box
  • On pair of sealing roller
  • On pair of skirt bending roller
  • Mechanical cut-off pitch variator
  • Mechanical cutting jaws speed variator
  • AC motor controlled by inverter.
  • Digital thermostats
Optionals
  • Adjustable folding box
  • Embossing date coding
  • Stainless steel trolley.
Technical data
weight 120 Kg
dimensions 600 x 1640 x h850 mm
capacity 2400 pz/h
max bobin reel width 250 mm
installed power 1.5 kW
voltage 220/1/50-60 V/Ph/Hz
aire consume ND
Distance between jaws centers 90
