• wrapping machine W400

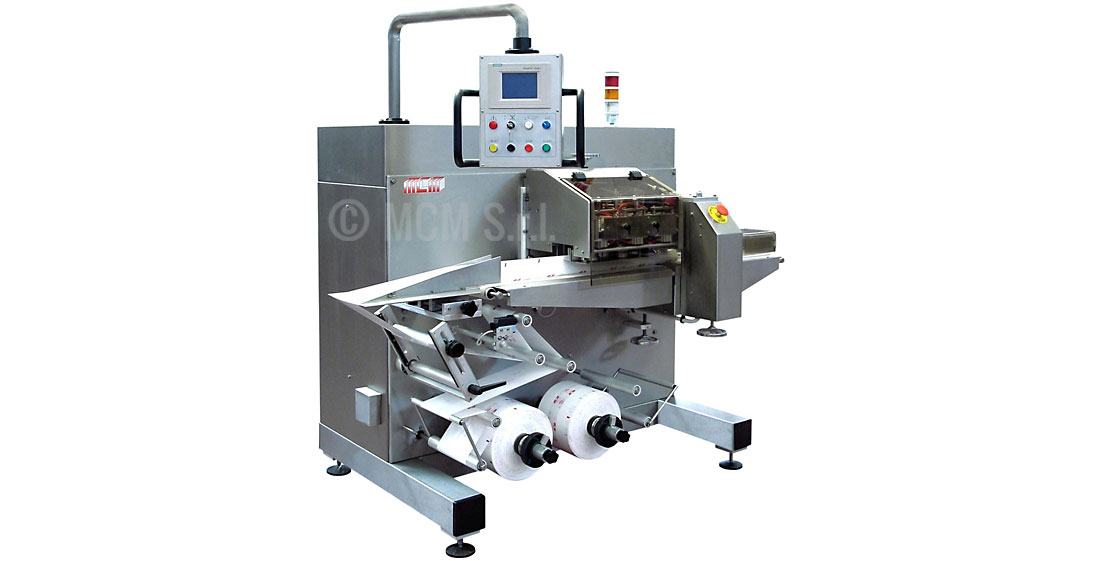

    W400 wrapping machine

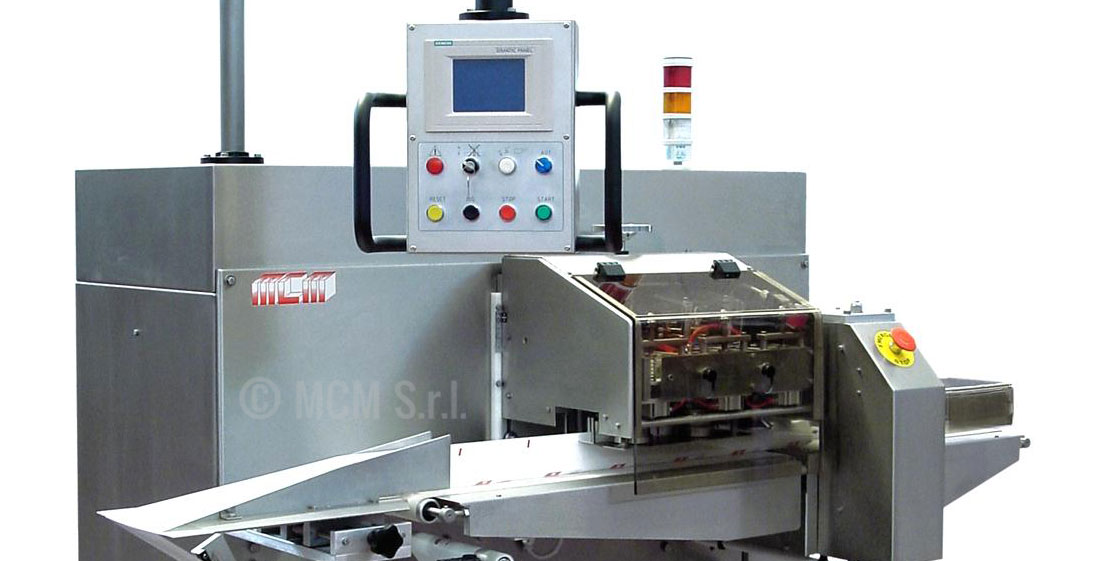

  • Particolar of wrapping machine W400

    W400 wrapping machine

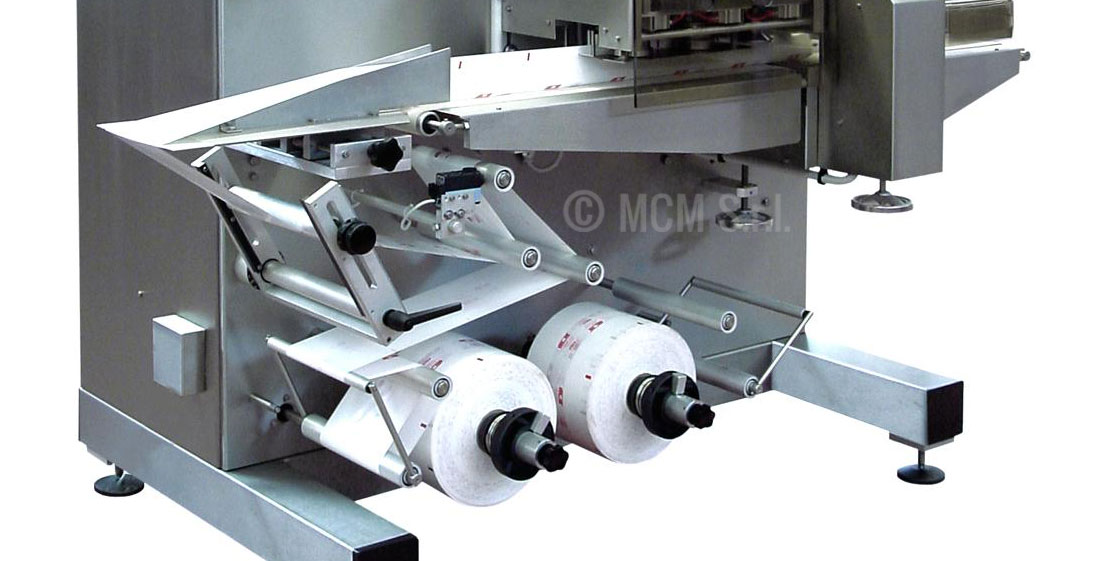

  • Particolar of wrapping machine W400

    W400 wrapping machine

W400 wrapping machine

W400 wrapping machine is distinguished by its reliability, performance and simplicity in its use and maintenance.

It is availlable in several releases to be integrated in the best way to all configurations of ice cream automatic lines (novelty and extrusion line). It is capable untill 7000 pieces/h.

Completely managed by brushless servo motoe controlled by axes controller.

Manufactured in stainless steel, coated steel and anodised aluminium, it is able to work with films in biorientate polypropylene, coextruded and/ or lacquered, several coupled materials, hot sealing or cold having thickness 20 up to 40 ?m, neutral, continuous printing or with picture in place.

Standard equipment
  • Double reel holder
  • Simple cutter jaws
  • Fixed folding box
  • Picture in place device
  • Three pairs of sealing rollers motioned by Brushless servo motor
  • Brushless servo motor
Optionals
  • Automatic reel splicer
  • Double cutter jaws
  • Rotating data printer
  • Embossing date coding
Technical data
weight 500 Kg
dimensions 1200 x 2000 x h1600 mm
capacity 7000 pz/h
max bobin reel width 300-400 mm
installed power 5 Kw
voltage 380/3/50-60 V/Ph/Hz
aire consume 10-4 Nl/h-bar
Distance between jaws centers 130 - 150 mm
