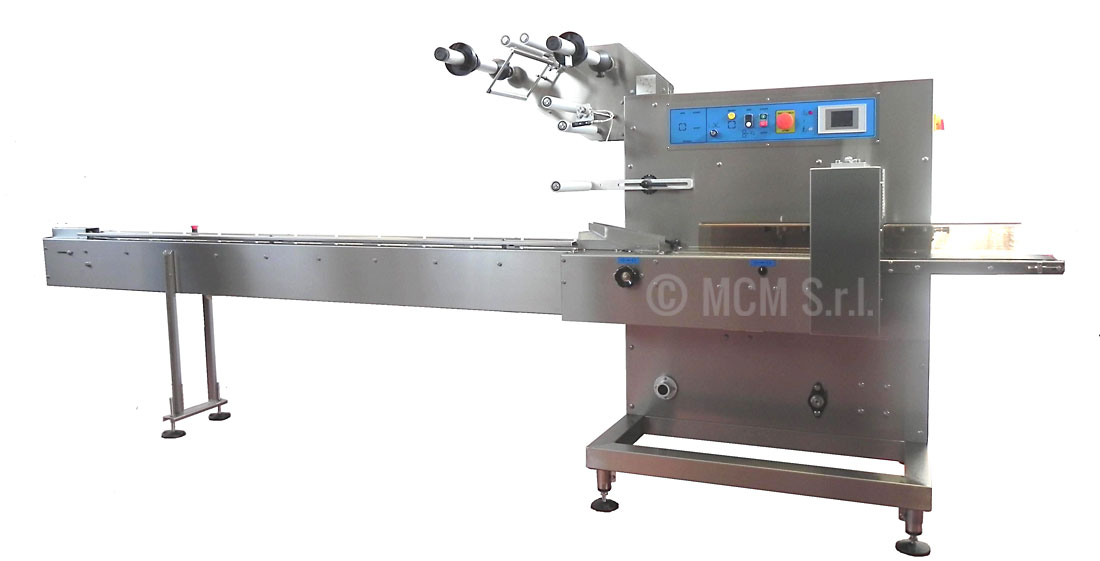

• wrapping machine M230

    M230 wrapping machine

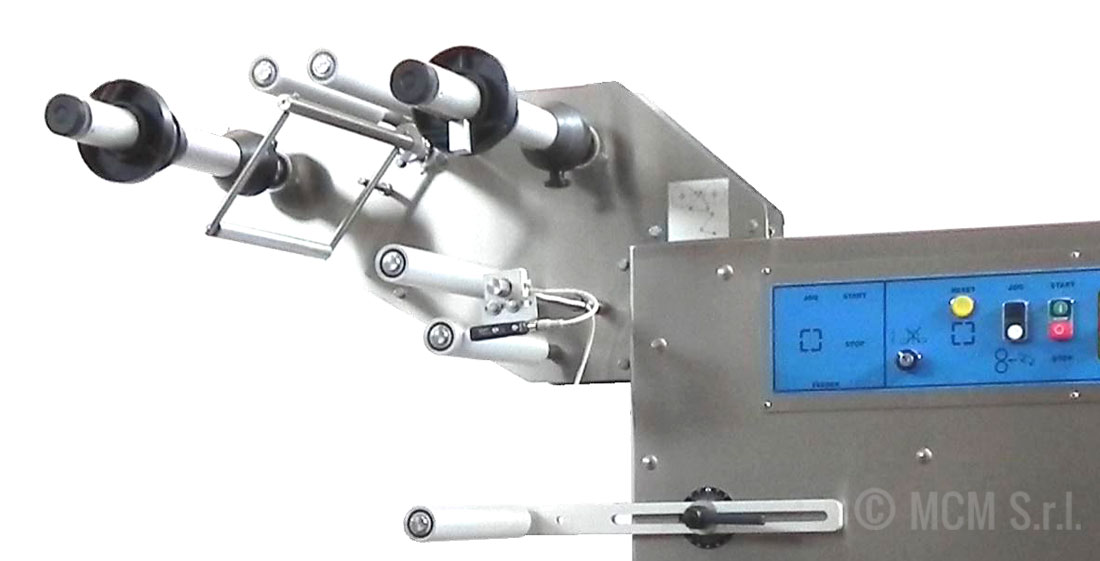

  • Particolar of wrapping machine M230

    M230 wrapping machine

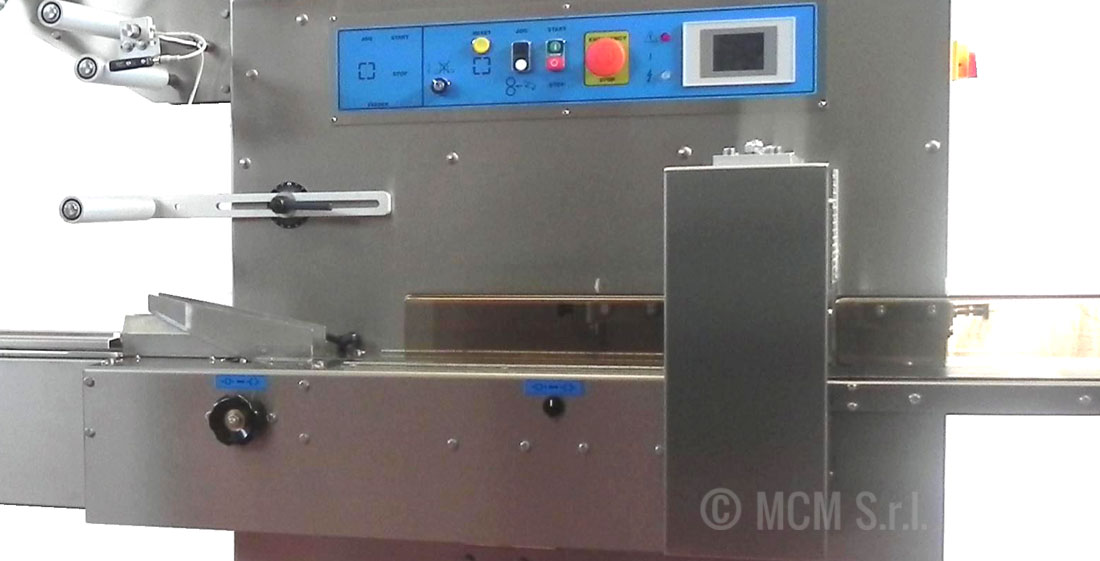

  • Particolar of wrapping machine M230

    M230 wrapping machine

M230 wrapping machine

M230 wrapping machine is distinguished by its compactness, reliability, performance and simplicity in its use and maintenance.
It is also used as completion of automatic lines, considering that M230 with double cutter jaws is capable to rich up to 200 pcs/m.

Sealing rollers are standard fitted with Brushless servo motor, picture in place is automatic and integrated into the servo drive. It is also available with brushless servo motor on cutter jaws.

Manufactured in stainless steel, coated steel and anodised aluminium, it is able to work with films in biorientate polypropylene, coextruded and/ or lacquered, several coupled materials, hot sealing or cold having thickness 20 up to 40 μm, neutral, continuous printing or with picture in place.

Standard equipment
  • Double reel holder
  • Simple cutter jaws
  • Fixed folding box
  • Picture in place device
  • Three pairs of sealing rollers motioned by Brushless servo moto
  • Tiltable first pair of sealing rollers
  • Mechanical cutting jaws speed variator
  • AC motor controlled by inverter.
  • Digital thermostats
Optionals
  • Brushless servo motor on cutter jaws
  • Adjustable folding box
  • Automatic reel splicer
  • Double cutter jaws
  • Cutter jaws torque limiter
  • Automatic rollers releasing
  • Rotating data printer
  • Embossing date coding
Technical data
weight 500 Kg
dimensions 1000 x 2900 x h1600 mm
capacity 9000-12000 pz/h
max bobin reel width 300-400 mm
500-600 mm mm
installed power 4.0 kW
voltage 380/3/50-60 V/Ph/Hz
aire consume 5-4 Nl/h - bar
Distance between jaws centers 90 -110 mm
130-150 mm
