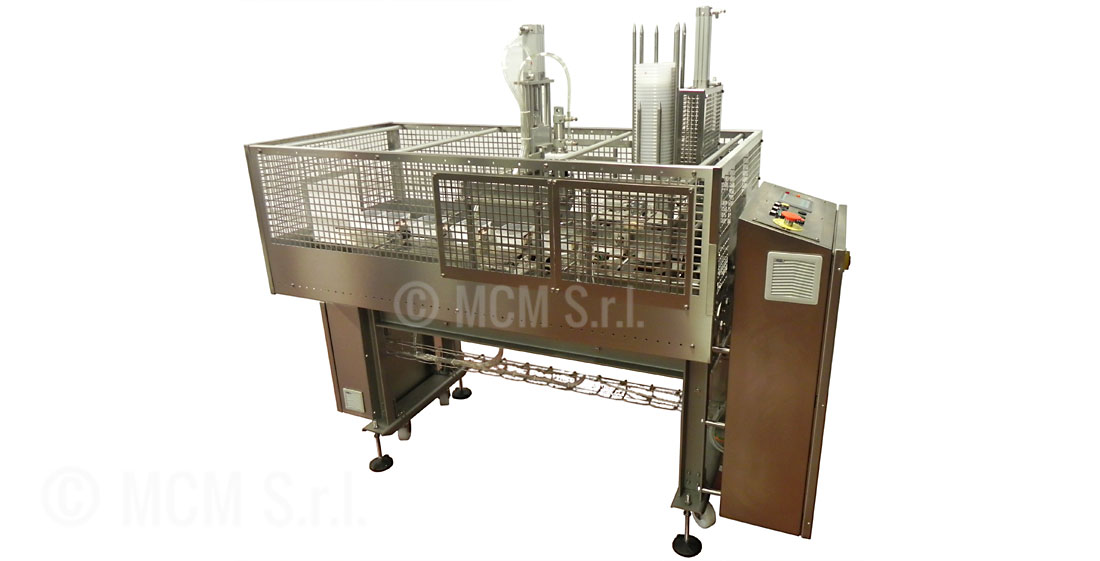

    Compact Filler machine

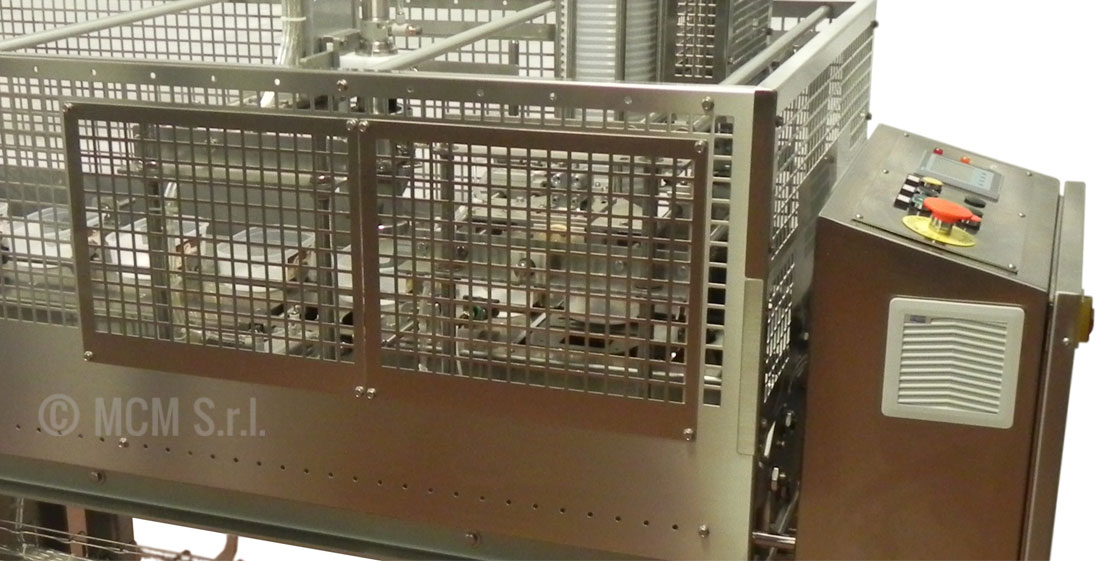

  • Particolar of Compact Filler machine

    Compact Filler machine

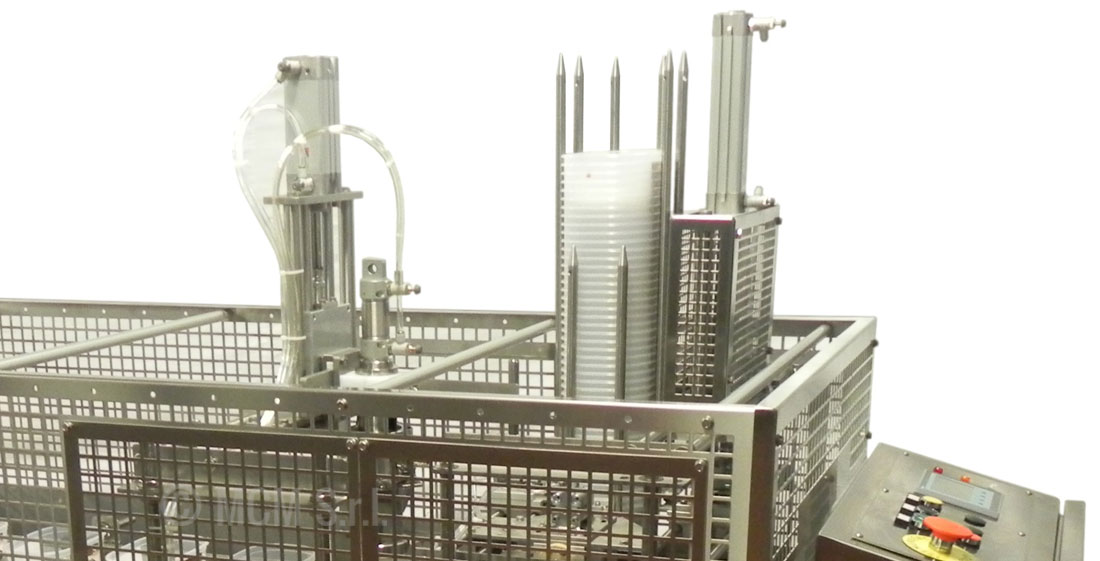

  • Particolar of Compact Filler machine

    Compact Filler machine

Compact Filler machine

The Compact Filler machine is distinguished by its compactness, reliability, performance and simplicity in its use and maintenance.
Born for semi industrial field.

Manufactured in stainless steel, coated steel and anodized aluminum.

Possibility to use from 1 to 3 ice cream dosers, according to the tub size.
Also possibility to obtain various decorations and additional ingredients dosing equipment.

Standard equipment
  • Single reel holder
  • Adjustable pneumatic tubs dispenser
  • One bicolor doser with internal ripple
  • Pneumatic doser vertical movement
  • Pneumatic trap to discharge the ice cream in case of missing tub
  • Servomotor for transport chain stepping
  • Touch screen operator panel to manage parameters and recipes
  • 256 savable recipes
  • Wheel for transportability
Optionals
  • electronic dispenser with variable stroke
  • electronic doser movement with variable strok
  • second and third doser
  • external variegator
  • pneumatic pump for ripples
  • cocoa powder dispenser
  • chopped nuts dispenser
Technical data
weight 300 Kg
dimensions 800 x 2100 x h1800 mm
capacity 1200 pz/h
max tub dimension 250 x 170 mm
max tub capacity da 0,5 a 3 lt
installed power 2.5 kW
voltage 220/1/50-60 V/Ph/Hz
aire consume 400-6 Nl/h-bar
