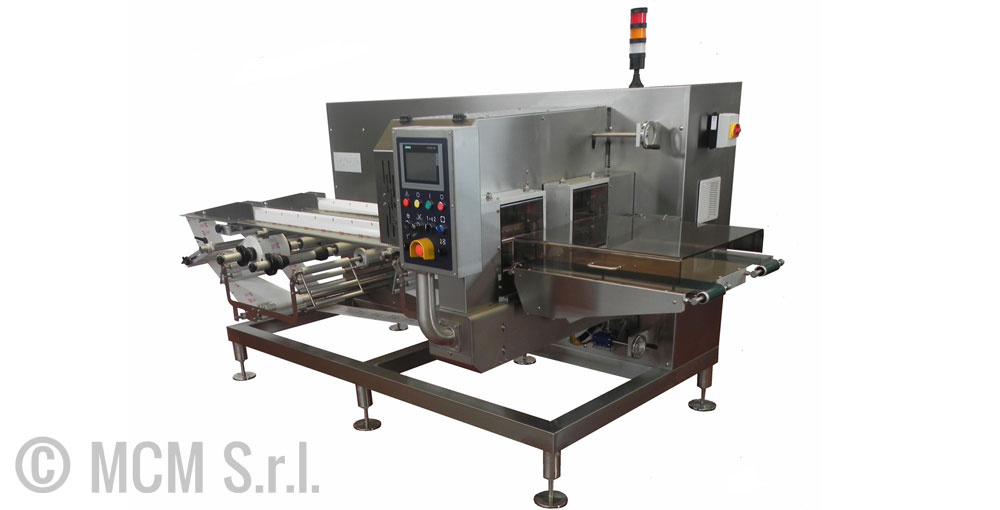

    W800 wrapping machine

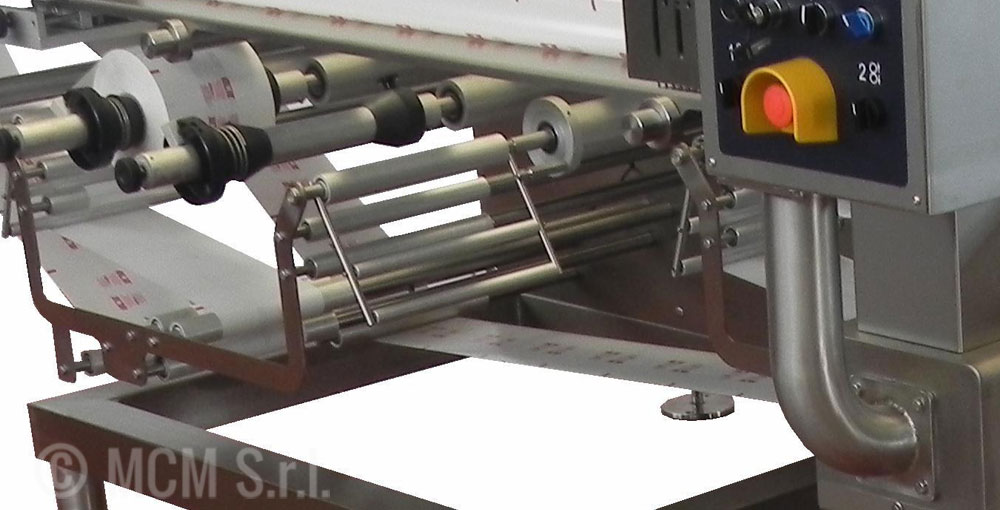

  • Particolar of wrapping machine W800

    W800 wrapping machine

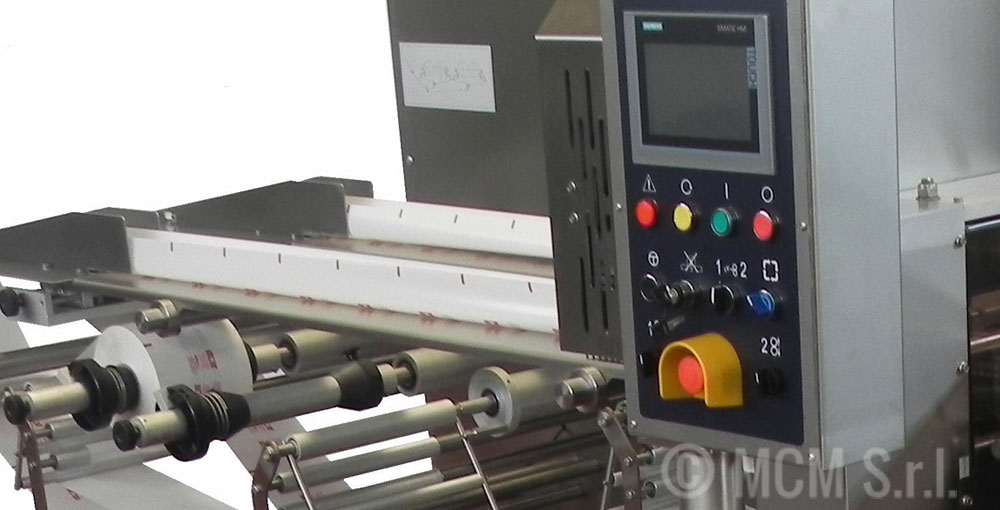

  • Particolar of wrapping machine W800

    W800 wrapping machine

W800 wrapping machine

W800 wrapping machine is distinguished by its reliability, performance and simplicity in its use and maintenance.

Born to be integrated with ice cream extrusion lines, able to satisfy.
It is capable untill 12.000 pieces/h.

Completely managed by brushless servo motors controlled by axes controller.

Manufactured in stainless steel, coated steel and anodized alluminium, it is able to work with films in biorientate polypropylene, coextruded and/or lacquered, several coupled materials, hot sealing or cold having thickness 20 up to 55 mm, neutral, continuous printing or with picture in place.

Standard equipment
  • Double reel holder
  • Simple cutter jaws
  • Adjustable folding box
  • Picture in place device
  • Three pairs of sealing rollers motioned by Brushless servo motor
Optionals
  • Automatic reel splicer
  • No product no bag
Technical data
weight 800 Kg
dimensions 3645 x 1930 x h1700 mm
capacity 12000 pz/h
max bobin reel width 300 mm
installed power 9 Kw
voltage 400/3/50-60 V/Ph/Hz
aire consume 100 - 4Nl/h-bar
Utility
download pdf technical sheet Print the technical shhet
